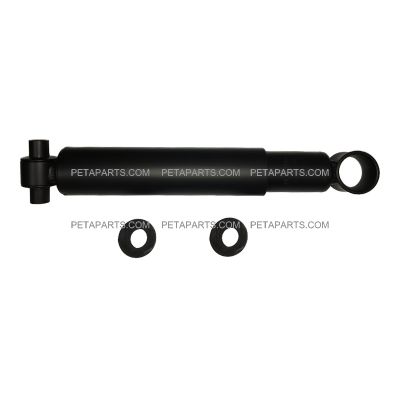

| Product Name | Heavy Duty Front Axle Shock Absorber with Bushing (Fit: Kenworth and Other Trucks) (Replaces: Gabriel 85070) |
|---|---|
| SKU | STX85070 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 7.5 |
| Weight unit | lbs |
Out of stock
SKU
STX85070
Shocktix Shock Absorbers & DOT Approved.
OEM Cross Reference:
671052, 665858, B71-1001, 65159
Fit & Applications:
- 2006-11 T660, 05-11 T800/B/B(8x4)/SH/H/W, 05-11 W900/B/L/S with 12,000 and 13,200 lb Front Axle;
- 2010-11 T470 with 12,000 to 20,000 lb Taperleaf Front Suspension;
- 06-10 T2000, T600/A/B, T602 with 13,000lb Front Axle;
- 2011 T700 Series with 13,000 lb Front Axle.

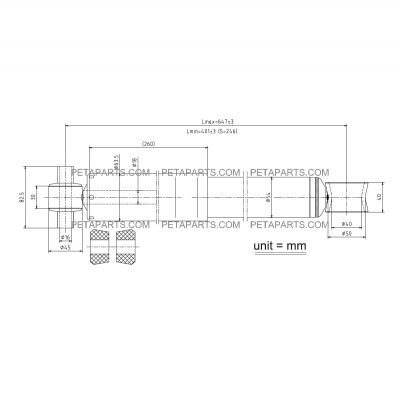

Specifications
- Bore: 1-5/8"
- Type: Reference C85000
- Mounting Upper: ES174
- Mounting Lower: EB3
- Stroke: 9.78"
- Collapsed Length: 15.82"
- Controls Rebound: 1100lb
- Controls Compression: 310lb
- External Diameter Illustration: C
- Extended Length: 25.60"
