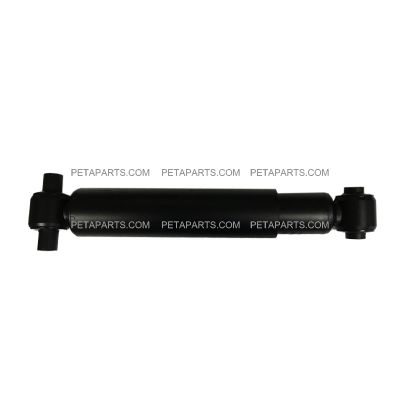

| Product Name | Heavy Duty Front Shock Absorber with Bushing (Fit: Mack CHN, CHU, CTP, GU, TD, CXN, CXP, CXU; Volvo VHD, VNL, VNM, VT; Front Axle) (Replaces: Gabriel 85061) |
|---|---|
| SKU | STX85061 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 7.5 |
| Weight unit | lbs |
Out of stock
SKU
STX85061
Shocktix Shock Absorbers & DOT Approved
OEM Cross Reference:
14QK-3107M, 20973993, 14QK-431M, 141700000373, 20513881, 141700000380, 14QK-3114M, SDA141700000380, 14QK-2136M, 20897198,
471700002626, 3092842, 3949241, 20433424, 8078195, 65130, 65494
Fit & Applications:
- Mack Models with O.E.M. Number,
- CX Vision Series w/ Hendrickson Air Suspension, or w/ Parabolic Spring;
- 2008 - 10 CXU-613 Models with 40,000 lb Rear Air Suspensions, or 12,000lb Front Axles;
- Pre-2007 Mack CHN-613 Models with 12,000 lb Front Axles;
- Volvo 2006-10 VNL, VT with 12,000 - 13,200 lb Front Axles;
- Volvo VN Series-2200 with OEM Number.

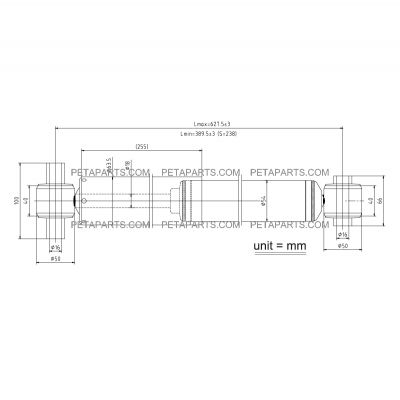

Specifications
- Bore: 1-5/8"
- Type: Reference C85000
- Mounting Upper: ES161
- Mounting Lower: ES162
- Stroke: 9.53"
- Collapsed Length: 15.22"
- Controls Rebound: 1216lb
- Controls Compression: 195lb
- External Diameter Illustration: C
- Extended Length: 24.75"
