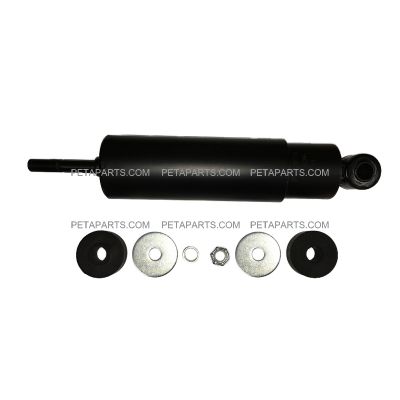

| Product Name | Heavy Duty Front Shock Absorber with Bushing (Fit: NaviStar/International, and Other Trucks) (Replaces: Gabriel 85316) |
|---|---|
| SKU | STX85316 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 10.5 |
| Weight unit | lbs |
In stock
SKU
STX85316
Shocktix Shock Absorbers & DOT Approved
OEM Cross Reference:
70334, AMS650107, 3571711C1, 2015556C1, 1664788C2, 2032533C1, 650107, 40-4951, 3199937, 65107
Fit & Applications:
- International
- 8100, 8200, 8300, 9100 Series,
- 9300, 9300i, 9400 & 9400i Long Hood Conventional Truck & Tractor,
- Series 9900, 9900i, 9900ix Long Hood Conventional Truck,
- Series 9200, 9200i - Tractor & Straight Truck with 12000 - 14000 lb Suspension;
- 9600, 9700 series except Low Profile; 4900 Series with Dual Doors;
- 2009-11 5900i Models with 12,000 lb - 14,000 lb Front axle;
- 9800 Series with Set Back Axle;
- All 2000 Series; International, Mack, Maeco, and Oshkosh Inc with Additional OEM Interchange

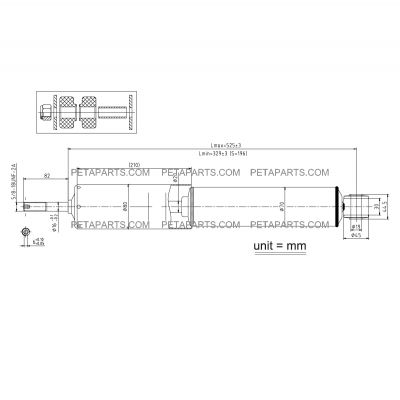

Specifications
- Bore: 1-5/8"
- Type: Reference D85300
- Mounting Upper: S21
- Mounting Lower: ES36
- Stroke: 7.76"
- Collapsed Length: 12.85"
- Controls Rebound: 943lb
- Controls Compression: 443lb
- External Diameter Illustration: D
- Extended Length: 20.61"
