| Product Name | Heavy Duty Shock Absorber with Bushing (Fit: Freightliner, Peterbilt, Kenworth, and Other Trucks) (Replaces: Gabriel 85900) |
|---|---|
| SKU | STX85900 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 7.5 |
| Weight unit | lbs |
In stock
SKU
STX85900
OEM Cross Reference & DOT Approved.
16-18103-000, 481700000493, 16-17144-000, 16-17361-000, 481700000477, 481700131919, 70701PLUS, 665918,
665903, 665944, 70701, 65436, 557033
Fit & Applications:
- Freightliner 2003-07 Custom VC Chassis;
- Kenworth C500/B/K, C540, C550, T400/B, T450B, T600/A/B, T602, T800/B/B(8x4)/SH/H/W, W900/B/L/S, K100/E, K125, K300, T300, T2000 with Air Glide 200 with 40,000 lb Suspension with 8 air bags, 4 units required

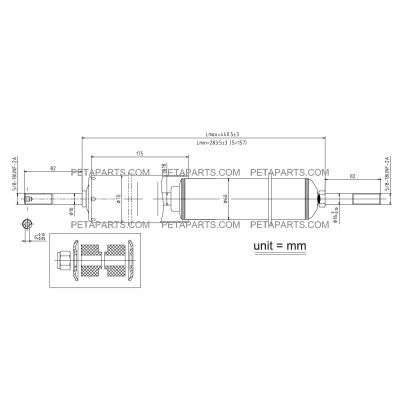

Specifications
- Bore: 1-5/8"
- Type: Reference 85900
- Mounting Upper: S21
- Mounting Lower: S21
- Stroke: 6.11"
- Collapsed Length: 11.16"
- Controls Rebound: 1467lb
- Controls Compression: 337lb
- External Diameter Illustration: G
- Extended Length: 17.27"
