More Information
Product Name Heavy Duty Shock Absorber with Bushing (Fit: GMC, Ford, International, Peterbilt, Isuzu, and Other Trucks) (Replaces: Gabriel 85012)
SKU STX85012
Length (in) 24.00
Width (in) 4.00
Height (in) 4.00
Weight per unit 6.5
Weight unit lbs
In stock
SKU
STX85012

Shocktix Shock Absorbers & DOT Approved



OEM Cross Reference:

2021459, D7HT18045HA, 8516306660, 9516306660, 9516306662, 306444C91, 308646C91, 308668C91, 308668C92, 308669C91,

320444C91, 329316C92, 360444C91, 453556C91, 453564C91, 467983C91, 467985C91, 471201C91, 874695R91, 874695R92,

874696R91, AMS650101, AMS650113, AMS650434, AMS660183, 8972536510, 8972536651, 8980980591, 9516306660, 0201787,

0201890, 0202225, 0202738, 0202741, 0204010, 02738, 201890, 202225, 202738, 202741, 204010, 2312262, 680348, B716002,

B716016, 202741, 665932, 680601, 665932, 65113



Fit & Applications:



International: A-170, B-170, AC-170, BC-170, A-180, B-180, AC-180, BC-180, ACF-170 & BCF-170, C-150; M1600, MC1600, M1700 & MC1700; MA1200, M1400, M1500, MA1500;

S-Series School Bus 1603, 1703, 1803 & 1853 - Exc.

Axle Codes 02054, 02057, 02059, 02089, 02091, 02098, 02101, 02109, 02139, 02208, 02218, 02228, 02309, 02329, 02339; 1603, 1703, 1803 & 1853 with 9000, 10800 or 12000 lb Front Axle;

Loadstar 1600, 1600 (4x4), 1610, 1610 (4x4), 1610FC, 1700, 1700 (4x4), 1710, 1710 (4x4), F-1700, 1750, 1800, 1810, F-1800, F-1800-D, 1850, F-1850, 1890 & 1890-D with 9000, 10800 or 12000 lb Front Axle;

Cargostar CO-1600, CO-1610A & B, CO-1630A & B, CO-1700, CO-1710A & B, CO-1730A & B, CO-1750, CO-1750A & B, CO-1800, CO-1810A & B, CO-1830A & B, CO-1850, and CO-1850A & B

Peterbilt:

  • 372 C.O.E Models with Front Spring Suspension;
  • 362 C.O.E. Models with Progressive Springs;
  • 357, 375, 376, 377, 378, 379 Series,
  • Pre-2009 385, 387 Series, 2006+ 386 Series, with Spring Suspension and Set Back Front Axle;
  • 330 Series with 12000 lb Set Back Front Axle;
  • 2004-2010 335 & 340 Series with 12000 lb Set Back Front Axle;
  • 2008+ 388 & 389 Series with Spring Suspension and Set Back Front Axle;
  • 2008-10 367, 365 Series with 10000 lb to 16000 lb Taperleaf Front Spring Suspension.
  • Others: Chevrolet (Isuzu) 1983-95 W4 Series;
  • 1989-92 W4 Series Flatlow;
  • 1983-95 W4 Series;
  • 1989-92 W4 Series Flatlow;
  • Ford 1978-79 P-600;
  • GMC (Isuzu) 1983-95 W4 Series;
  • 1989-92 W4 Series Flatlow; W4 Series;
  • Isuzu 1986 - 95 NPR Series (NPC & NPN);
  • 1989 - 92 NPR Series Flatlow;
  • 1986 - 94 NPR Series (All);
  • Isuzu Models with IEM Number,
  • 1985 KS22 Series (All)

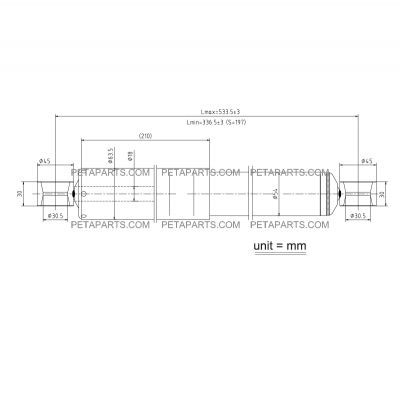

Specifications

  • Bore: 1-5/8"
  • Type: Reference G85000
  • Mounting Upper: EB2
  • Mounting Lower: EB2
  • Stroke: 7.78"
  • Collapsed Length: 13.22"
  • Controls Rebound: 523lb
  • Controls Compression: 199lb
  • External Diameter Illustration: C
  • Extended Length: 21"
