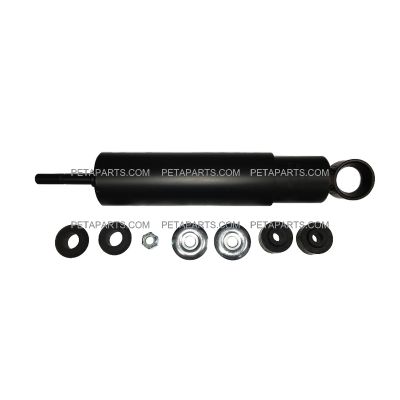

| Product Name | Heavy Duty Shock Absorber with Bushing (Fit: International, Kenworth, Peterbilt 3xx, Mack, Volvo, and other Trucks) (Replaces: Gabriel 85311) |
|---|---|
| SKU | STX85311 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 11.5 |
| Weight unit | lbs |
Out of stock
SKU
STX85311
Shocktix Shock Absorbers & DOT Approved
OEM Cross Reference:
97999902633, 56101Z2000, 56101Z1030, 56101Z2000, AMS650402, AMS650444, AMS700404, 680586, 0304629, 0307421, 304629,
307281, 307421, 307424, 680586, 3915948, 680241, 680586, 901974, 65402, 65444, 74417, CAHL417
Fit & Applications:
- International 600, 700, 900 Series;
- Kenworth Models with OEM Number;
- Mack Models with OEM Number;
- Peterbilt Nov.
- 1982+ 385, 357, 362, 372, 375, 376, 377, 378, 379,
- 2004-10 335,
- 07-10 340,
- 08-10 365,367,
- 2010+ 337, 382, 384, 587 with Air Trac Suspension (38000 or 40000 lb);
- 2006+ 386,
- Pre-2009 387,
- 2008+ 388, 389 with Peterbilt Air Leaf Suspension.

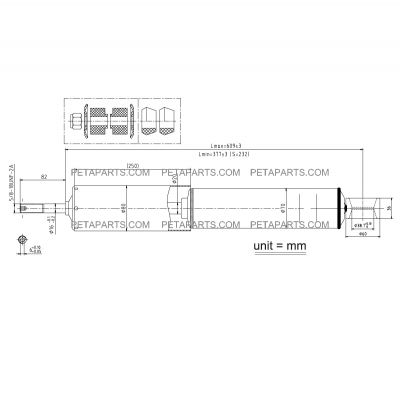

Specifications
- Bore: 1-5/8"
- Type: D85300
- Mounting Upper: S21
- Mounting Lower: EB3
- Stroke: 9.16"
- Collapsed Length: 14.79"
- Controls Rebound: 764lb
- Controls Compression: 254lb
- External Diameter Illustration: D
- Extended Length: 23.95"
