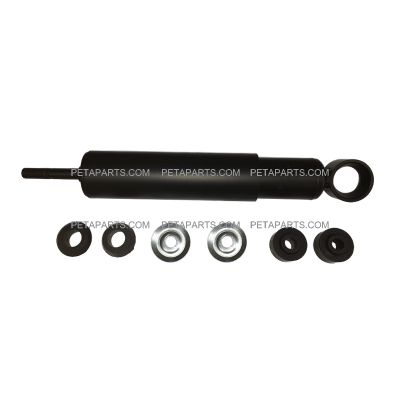

| Product Name | Heavy Duty Shock Absorber with Bushing (Fit: International, Peterbilt, and Other Trucks) (Replaces: Gabriel 89424) |
|---|---|
| SKU | STX89424 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 9 |
| Weight unit | lbs |
In stock
SKU
STX89424
Shocktix Shock Absorbers & DOT Approved
OEM Cross Reference:
3945814, 97-9999-02633, 453527C91, 453528C91, AMS650402, 56101 Z1030, 56101 Z2000, 680241, 680586,
03-07421PLUS, 650402, 650402MT, 03-07421, C71-6002, 03-04629, 03-07424, 03-07424PLUS, 3199948, 3199988, 3915948
Fit & Applications:
- Flexible Bus with OEM Number;
- International 600, 700, 900 Series;
- Kenworth Models with OEM Number;
- Mack Models with OEM Number;
- Peterbilt Nov.
- 1982+ 385, 357, 362, 372, 375, 376, 377, 378, 379,
- 2004-10 335,
- 07-10 340,
- 08-10 365,367,
- 2010+ 337, 382, 384, 587 with Air Trac Suspension (38000 or 40000 lb);
- 2006+ 386,
- Pre-2009 387,
- 2008+ 388, 389 with Peterbilt Air Leaf Suspension.

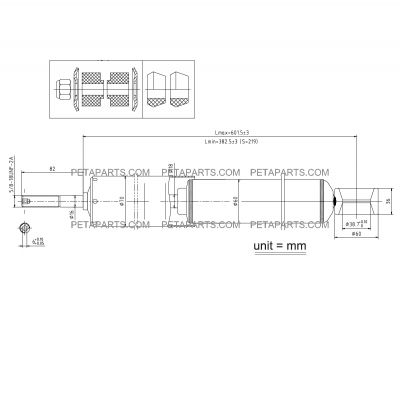

Specifications
- Bore: 1-5/8"
- Type: Reference D85300
- Mounting Upper: S21
- Mounting Lower: EB3
- Stroke: 9.16"
- Collapsed Length: 14.79"
- Controls Rebound: 764lb
- Controls Compression: 254lb
- External Diameter Illustration: D
- Extended Length: 23.95"
