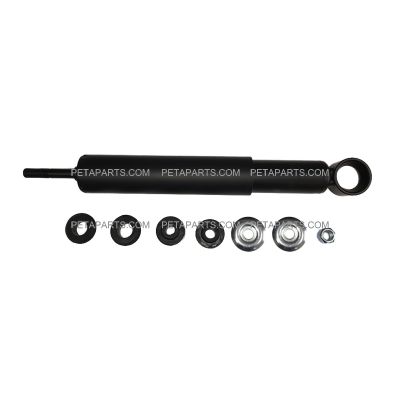

| Product Name | Heavy Duty Shock Absorber with Bushing (Fit: Volvo, Peterbilt and other Trucks) (Replaces: Gabriel 85311) |
|---|---|
| SKU | STX85033 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 8 |
| Weight unit | lbs |
In stock
SKU
STX85033
Shocktix Shock Absorbers & DOT Approved
OEM Cross Reference:
AMS650400, 03-06084PLUS, 03-07423PLUS, 680435, 650400MT, 03-07423, 3919977, 3919976, 3919946, 665660
Fit & Applications:
- International, Mack, Volvo with OEM Number;
- Paccar TruckMaster Shock 665633;
- Peterbilt 330 Series Pre-2002 Models with Peterbilt 40000 lb Low Air Leaf Suspension;
- 2004 335 Series,
- Pre-2003 357, 362, 372, 375, 376, 377, 378, 379, 385, 387 Series with Peterbilt Low Air Leaf Suspension.

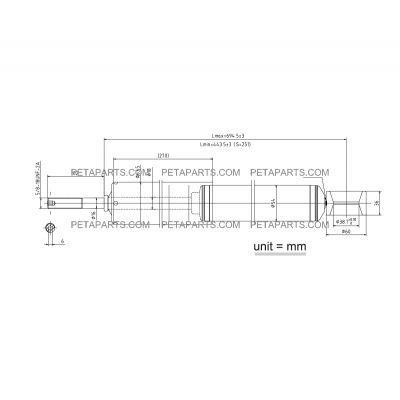

Specifications
- Bore: 1-3/8"
- Type: C85000
- Mounting Upper: S21
- Mounting Lower: EB3
- Stroke: 9.84"
- Collapsed Length: 17.37"
- Controls Rebound: 764lb
- Controls Compression: 254lb
- External Diameter Illustration: C
- Extended Length: 27.21"
