More Information

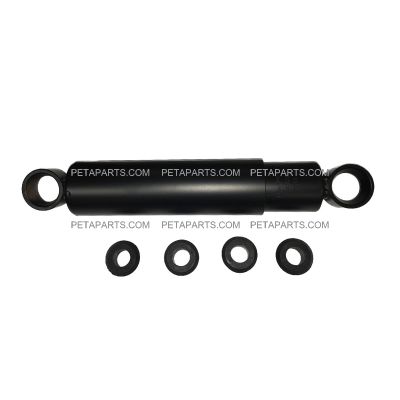

Product Name Heavy Duty Steer Axle Shock Absorber with Bushing (Fit: Freightliner FLA, FLB on Steering Axle and Other Vehicle Applications) (Replaces: Gabriel 85320)
SKU STX85320
Length (in) 24.00
Width (in) 4.00
Height (in) 4.00
Weight per unit 12
Weight unit lbs
In stock
SKU
STX85320

Shocktix Shock Absorbers & DOT Approved



OEM Cross Reference:

10-12046-000, 10-12032-002, 10-12032-004, 10-12032-000, 10-12032-001, 10-12032-002PLUS, 680425, 70300, 3199972, 3919934, 65103, 74073



Fit & Applications:

  • Freightliner FLA & FLB COE; FLC & FLD 112&120 with OEM Number;
  • Classic and other models with OEM Number;
  • MAECO with Additional OEM Number.

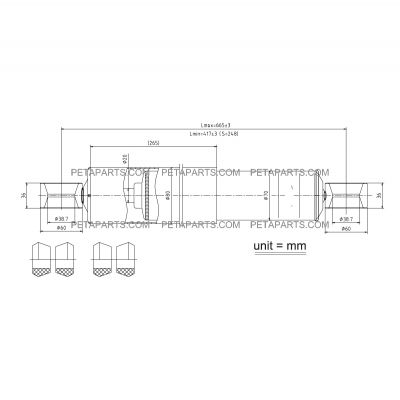

Specifications

  • Bore: 1-5/8"
  • Type: Reference D85300
  • Mounting Upper: EB3
  • Mounting Lower: EB3
  • Stroke: 9.78"
  • Collapsed Length: 16.35"
  • Controls Rebound: 970lb
  • Controls Compression: 308lb
  • External Diameter Illustration: D
  • Extended Length: 26.13"
