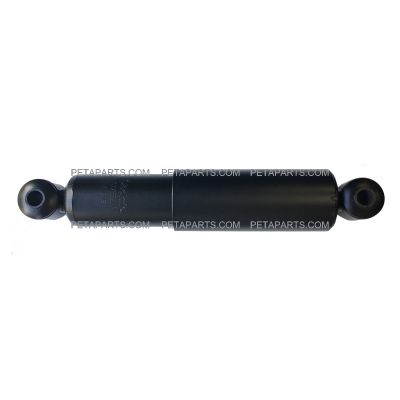

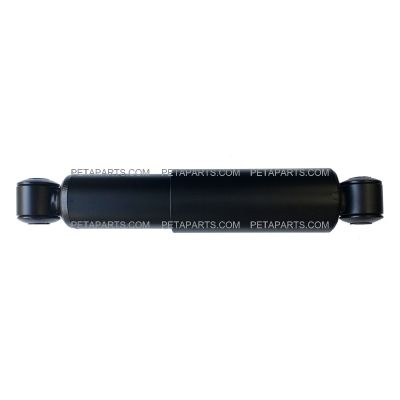

| Product Name | SHOKTIX Shocks STX85933 (Fit: Volvo Trucks) |
|---|---|
| SKU | STX85933 |
| Length (in) | 24.00 |
| Width (in) | 4.00 |
| Height (in) | 4.00 |
| Weight per unit | 7 |
| Weight unit | lbs |
In stock
SKU
STX85933
Shocktix Shock Absorbers & DOT Approved.
OEM Cross Reference: 64838-001, 64838-001L, 64838-002, 64838-002L, 64838-003, 14QK-422M, 20485633, 471700131921,
4KP398 MTM, 471700131920, 21137330, 471700003832, 65497
Fit & Applications:
- 06-09 Mack TD-Titan Series with Hendrickson AirTek Front Air Suspension;
- Volvo VNL 06-14 64T-300, 64T-300U,
- 05-14 64T-430,
- 06-14 64T-630, 42T-630,
- 06-14 64T-670,
- 06-14 64T-730, 64T-730U,
- 06-14 64T-780 Models with Hendrickson Airtek;
- Volvo, Mack, and MC Neilus Models with OEM Numbers.

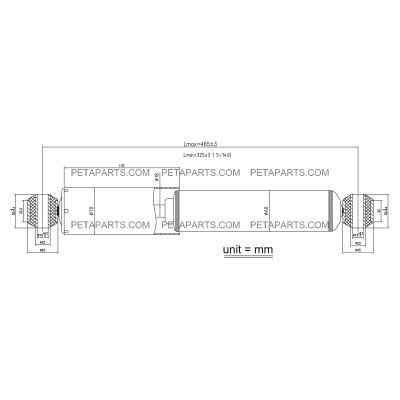

Specifications
- Bore: 1-5/8"
- Type: Reference G85900
- Mounting Upper: ES175
- Mounting Lower: ES175
- Stroke: 5.52"
- Collapsed Length: 12.71"
- Controls Rebound: 1089lb
- Controls Compression: 383lb
- External Diameter Illustration: G
- Extended Length: 18.23"
