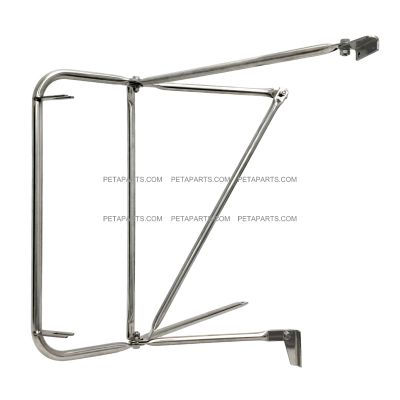

| Product Name | Stainless - Door Mirror Bracket Assembly with TOP Mount Lower Support Arm and Curved Cowl Plus Mounting Angles (Fits: 88-22 Kenworth T800 82-21 Kenworth W900B/L 05-07 Kenworth T300 08-21 Kenworth T170 270 370 Truck ) |
|---|---|
| SKU | PBP-35-141-BA |
| Length (in) | 24.00 |
| Width (in) | 10.00 |
| Height (in) | 4.00 |
| Weight per unit | 6 |
| Weight unit | lbs |
Out of stock
OE Replacement & DOT APPROVED
Materials: Stainless Steel
Identical for Driver and Passenger side
Fit Applicable Kenworth Trucks with TOP Mount Lower Support Arm and Curved Cowl
1988 - 2022 Kenworth T800
1982 - 2021 Kenworth W900B/L
2005 - 2007 Kenworth T300
2008 - 2021 Kenworth T170 270 370 ( Notice: The originally had west coast style mirrors installed, it will NOT REPLACE OEM# L 10618 R 10619 Door Mirror)
This Door Mirror Bracket Arm includes the following components
Mirror Brackets
1 Pc Stainless Extension Bracket Arm (Driver OR Passenger Side)
1 Pc Stainless Lower Bracket Arm (Driver OR Passenger Side)
1 Pc Stainless Lower Support Arm (Driver OR Passenger Side)
1 Pc Stainless Vertical Bracket Arm (Driver OR Passenger Side)
1 Pc Stainless Vertical Support Arm (Driver OR Passenger Side)
1 Pc Stainless Upper Bracket Arm (Driver OR Passenger Side)
1 Pc Stainless Upper Support Arm (Driver OR Passenger Side)
Mounting Angles
1 Pc Mounting Angle for Upper Support Arm (Driver OR Passenger Side)
1 Pc Mounting Angle for Lower Support Arm (Driver OR Passenger Side)
1 Pc Duo Holes Stainless Steel Mounting Plate for Antenna
2 Pcs 5/16 - 18 x 1-1/8 Hex Cap Screws - Full Thread - 304 Stainless Steel
4 Pcs 5/16 - 18 x 3/4 Hex Cap Screws - Full Thread - 304 Stainless Steel
6 Pcs 5/16 Hex Nuts - 304 Stainless Steel
12 Pcs 5/16 Flat Washers - 304 Stainless Steel
6 Pcs 5/16 Lock Washers - 304 Stainless Steel
*Assembly required. Please contact a mechanical specialist should you require assistance.
